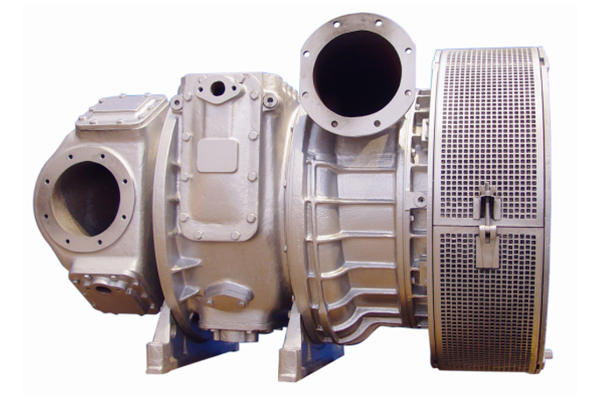

The TZ axial flow turbocharger comprises a single stage centrifugal compressor and an axial turbine with outboard rolling bearings. It is developed for four-stroke medium- speed and high-speed diesel engines with a power output range from 450 kW to 3200 kW.
Features

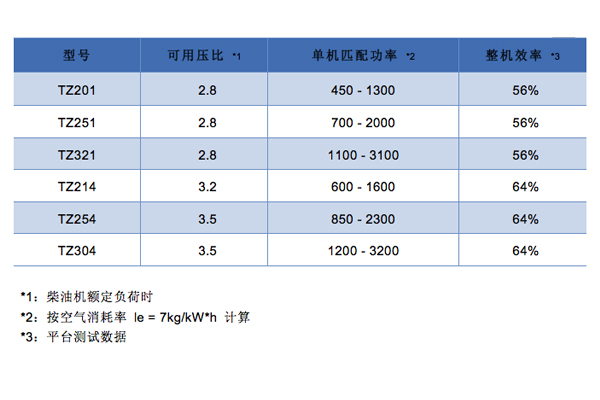

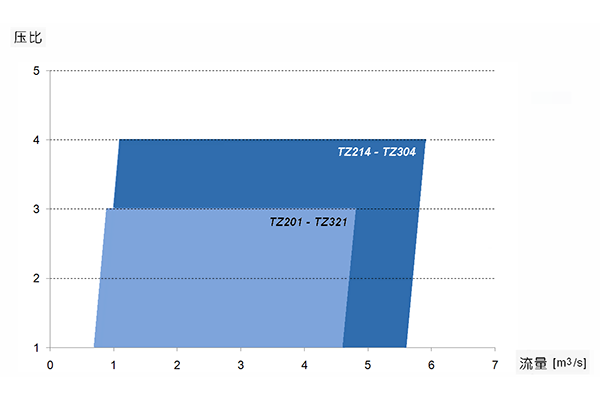

> Offering pressure ratio as high as 3.5, and turbocharging efficiencies up to 64%；
> Conventional outboard rolling bearing, high mechanical efficiency, good response to acceleration;
> Serial products, applicable for different diesel engines;
> Independent lubricating oil system, convenience for maintenance
